Enhancing Barite Processing with Clirik's Ultrafine Grinding Mill

Barite, a mineral rich in barium sulfate (BaSO₄), plays a crucial role in various industrial applications due to its unique properties such as high density, chemical inertness, and X-ray absorption capabilities. It is particularly vital in the oil and gas industry, where it serves as a weighting agent in drilling fluids to stabilize well pressure and prevent blowouts. To meet these industrial requirements, barite must be ground into ultrafine powder, typically with a fineness of at least 325 mesh. Clirik, a leading manufacturer of advanced grinding equipment, has developed an ultrafine mill that not only meets but also exceeds industry standards, offering a highly efficient, precise, and environmentally friendly solution for barite grinding.

The Barite Grinding Process with Clirik's Ultrafine Grinding Mill

Preparation: Feeding and Initial Crushing

The barite grinding process begins with the raw material being fed into a jaw crusher via an electromagnetic vibrating feeder. This feeder ensures a consistent and uniform supply of barite chunks into the crusher. The jaw crusher, equipped with robust movable and fixed jaws, applies compressive force to break down the large chunks into smaller pieces, reducing their size to below 10mm. This initial reduction is essential for preparing the material for the subsequent grinding stages.

Material Handling and Storage

After the initial crushing, the barite is transported to a storage hopper using a bucket elevator. This step is crucial for efficient vertical transportation and ensures a continuous supply of material to the grinding mill. The storage hopper temporarily stores the crushed barite, maintaining a steady feed rate even during fluctuations or downtime in the upstream process. This buffering mechanism is vital for ensuring uninterrupted operation of the grinding mill.

Core Grinding Operation

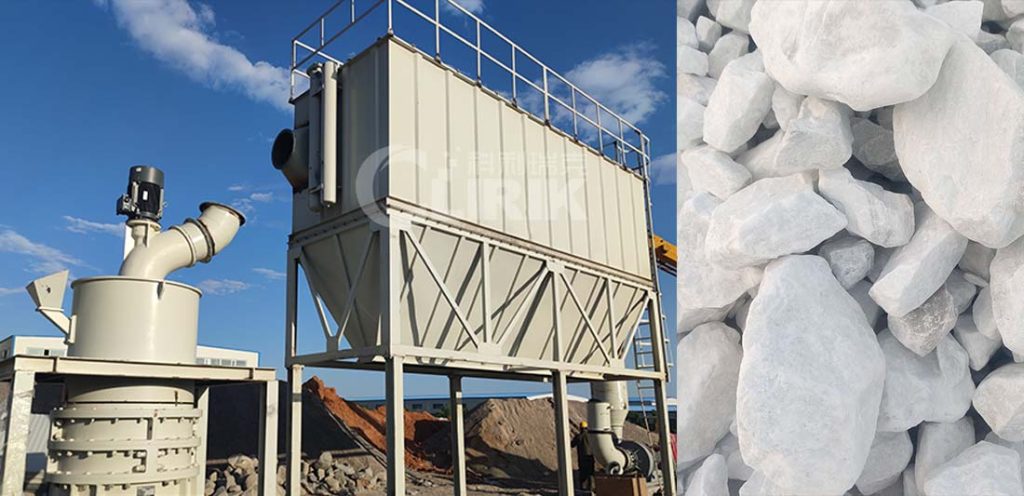

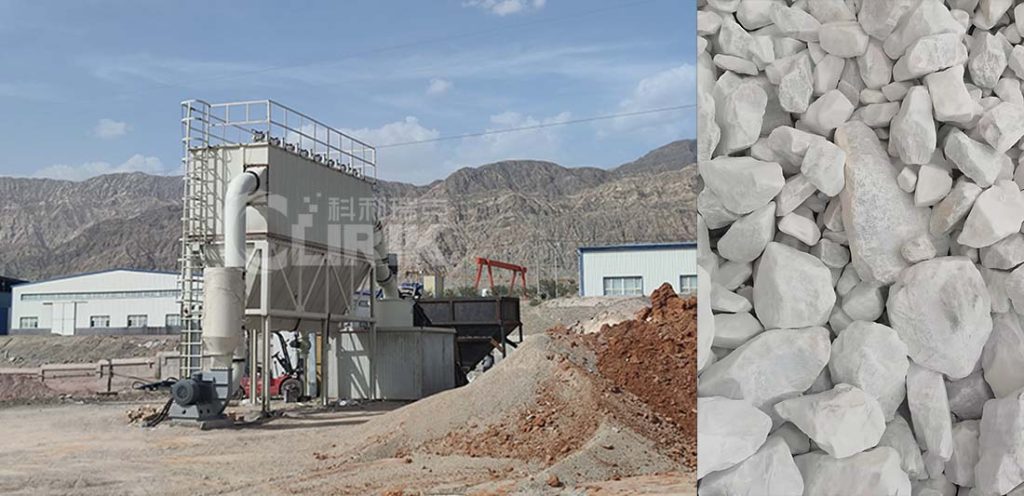

The ultrafine mill is the heart of the grinding process. It utilizes high-pressure grinding technology, where multiple grinding rings and rollers work in tandem to exert significant force on the material. The barite is fed into the mill through a central feed pipe and distributed evenly across the grinding table. As the table rotates, the material is gradually pushed towards the outer edge, where it encounters the grinding rings and rollers. The rollers, mounted on a rotating shaft, apply downward pressure, crushing the material into finer particles. This process is repeated multiple times as the material passes through different layers of grinding rings, ensuring thorough and uniform grinding.

The mill's design allows for precise control over the grinding parameters, enabling the production of barite powder with a fineness ranging from 325 to 3000 mesh. This wide range of adjustability makes the mill highly versatile, catering to the diverse requirements of various industries. For example, in the drilling industry, a fineness of 325 mesh is typically required to ensure proper suspension in drilling fluids. In contrast, for applications in the chemical or pharmaceutical industries, a much finer powder, such as 1250 mesh or higher, may be necessary to achieve the desired reactivity or purity.

Classification and Quality Assurance

After grinding, the barite powder is carried by airflow to a classifier, where it undergoes a critical quality control step. The classifier is a sophisticated piece of equipment designed to separate the ground barite powder based on particle size. It consists of a rotating impeller that creates a centrifugal force field, causing finer particles to be drawn towards the center while coarser particles are pushed to the periphery. Only particles that meet the desired fineness criteria are allowed to pass through the classifier and proceed to the next stage. The coarser particles, which did not meet the required fineness, are redirected back to the grinding chamber for further processing. This closed-loop system ensures that all barite powder is ground to the specified fineness, maintaining a high level of consistency and quality in the final product.

Collection and Packaging

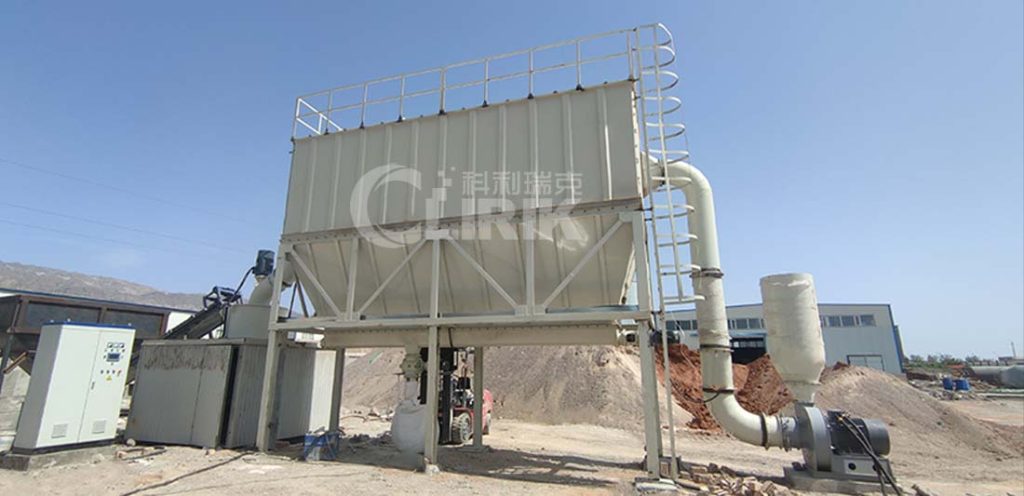

The final stage of the grinding process involves the collection and packaging of the ultrafine powder. The qualified powder, having passed through the classifier, is transported through a series of pipelines to a cyclone collector. The cyclone collector is a cylindrical device that uses centrifugal force to separate the fine powder from the airflow. As the air and powder mixture enters the cyclone, the rapid rotation causes the heavier powder particles to be thrown against the walls of the collector, where they slide down and are collected at the bottom. The clean air, now free of powder, exits the cyclone through the top and is either recirculated or released into the atmosphere after passing through a dust removal system. The collected barite powder is then transferred to a storage bin, where it is ready for packaging and transportation.

Innovative Features of Clirik's Ultrafine Mill

Clirik's ultrafine mill is designed with advanced features that enhance its performance and sustainability. The mill operates under negative pressure, minimizing dust emissions and ensuring a clean working environment. It is equipped with a high-efficiency dust removal system that captures and filters residual dust particles, preventing them from escaping into the atmosphere. The mill's energy-efficient design and adjustable grinding parameters contribute to its overall efficiency and longevity.

Clirik's ultrafine mill represents a significant advancement in barite grinding technology. Its comprehensive grinding process ensures high efficiency, precision, and environmental sustainability. The mill's versatility in producing ultrafine powder with a wide range of fineness makes it an ideal solution for various industrial applications. As the demand for high-quality barite powder continues to grow, Clirik's ultrafine mill is well-positioned to meet this demand while ensuring sustainable and eco-friendly operations.
