CaCo3 Ultrafine powder milling machine mill equipment



In order to meet the social development requirements for high-end calcium carbonate powder, we introduced the CLUM ultra-fine vertical mill equipment.

CLUM ultra-fine vertical mill equipment integrates milling, grading, conveying, secondary powder selection, and aging packaging. The fineness of the product can reach 400-3000 mesh, and the pass rate of 4 micron powder is as high as 97%.

The high-quality calcium carbonate powder produced by CLUM ultra-fine vertical mill equipment can be used in high-end coatings, paper, paint, rubber, PVC plastic and other industries.

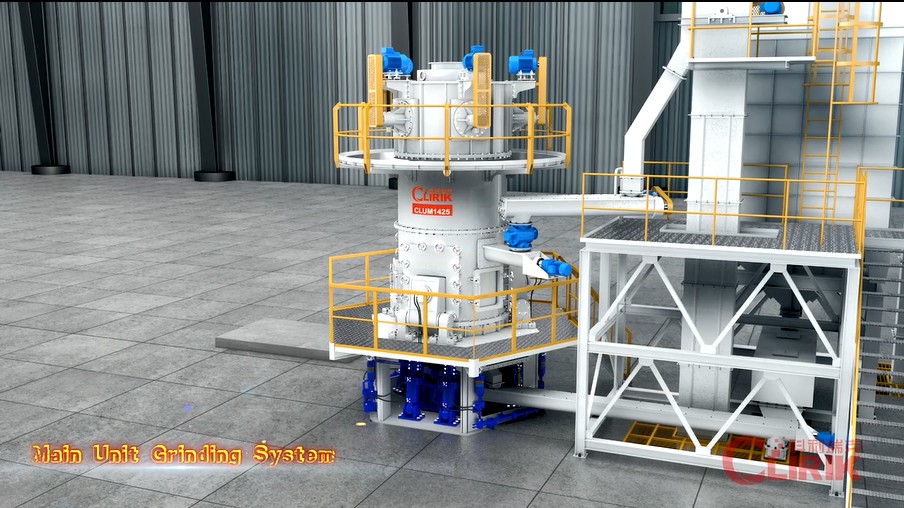

CaCo3 Ultrafine powder milling machine mill equipment


Advantages of CLUM ultra-fine vertical mill equipment:


1 High grinding efficiency and low pollution of finished materials


Adopting material layer grinding principle, the material stays in the mill for a short time, reducing repeated grinding.

The iron content in the finished product is small, and when used to grind white or transparent materials, the product has high Baidu and clarity.

Haomen designed the eye mask curve of the roller sleeve and the liner to realize the principle of ultra-fine grinding. When used for super-fine grinding, it is easier to form a material layer than ordinary vertical grinding. The required fineness.


2 Advanced grinding technology, energy saving


The principle of Duolun powder separator is adopted, and each rotor can be frequency-converted, and the fineness of the finished product can be achieved within a selected range. No secondary air separation is required, and no lower grades exist.

Due to the principle of superfine grinding and multi-round grinding, when producing products with the same fineness, it saves about 30% -50% of energy compared with ordinary mills, and has good economic benefits.

High reproducibility when producing multiple varieties.


3 Safe operation and intelligent control system


The speed of the main engine is controlled by frequency conversion, which is suitable for a wide range of materials.

Equipped with a mechanical limit device and an electronic limit device to prevent the roller sleeve and the disc liner from directly contacting to avoid destructive impact and severe vibration.

Adopt PLC / DCS automatic control roller pressure control method, the grinding pressure is accurately controlled, no manual operation is required.

Roller lubrication uses a separate lubrication station, and a single roller circuit uses dual pumps. The pumps work simultaneously. Even if the roller bearings are fully lubricated and cooled, the roller room will not be caused by excessive storage. leakage.

The assembled automatic control system can realize remote control and easy operation.


4 Less wear and tear, convenient maintenance and environmental protection


Because the working roller does not directly contact the grinding disc, and the grinding roller and the liner are made of materials, it has a long service life and less wear.

The grinding roller can be turned out to the outside of the casing for maintenance. It is convenient and quick to replace the roller sleeve and the lining plate, with less downtime loss.

The vibration is small and the noise is low; the overall equipment is dense, the system works under negative pressure, no dust spills, the environment is clean, and it meets environmental protection requirements.



Grinding process


The main motor drives the grinding disc to rotate through the reducer, and at the same time, the wind enters the LUM ultra-fine vertical mill from the air inlet.

The material falls on the grinding disc through the feeding opening of the screw feeder. Under the action of centrifugal force, the material moves uniformly from the grinding disc to the edge. When passing through the area of ​​the grinding roller table on the grinding disc, the large pieces of material are crushed directly by the grinding rollers, and the fine-grained materials are squeezed to form a bed for inter-grain crushing.

The crushed material continues to move toward the edge of the grinding disc until it is taken away by the strong air current at the wind ring, and the larger particulate material falls again on the grinding disc to continue crushing. When the material in the air flow passes through the upper separator, it is in the rotor. Under the action of the blade, the coarse particles are returned to the grinding disc for grinding.

The qualified fine powder is ground out with the airflow and collected by the system's powder collector. The collected powder is the product of ultra-fine vertical grinding. When the iron and other impurities mixed with the material move to the edge of the grinding disc with the material, it cannot be blown up by the wind due to its heavy weight.

It falls to the lower cavity of the mill and is scraped by a scraper installed at the bottom of the disc into the slag outlet and discharged outside the machine. .


Shanghai Clirik Machinery, one of the most professional mining use machines manufacturers in China. R&D several stone powder grinding mill by ourselves.
YGM Raymond mill for 50-450 mesh stone powder making;
HGM micro powder grinding mill for 300-2500 mesh minerals powder grinding;
CLUM vertical roller mill for 300-3000 mesh powder grinding;
