Raymond grinder equipment/grinding equipment

Raymond grinder equipment/grinding equipment is collocated with jaw crusher, elevator, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower and so on. We also offer spare parts and original wear parts related to the Raymond mill.

After many years of practice and improvement by manufacturer Shanghai Clirik Machinery Company, the structure of Raymond mill is getting perfect by low consumption, low investment, environment friendly, small occupation area, and more efficient than the traditional industrial grinding mill.

Raymond grinder equipment/grinding equipment is mainly applied to the powder processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc. Raymond grinding mill can produce powder from more than 280 kinds of non-flammable and non-explosive mineral materials below scale 7 of Moth's hardness and humidity below 6%, such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc. The final size is between 613 micron and 440 micron (0.613 mm—0.044mm).

Features of Raymond grinder equipment/grinding equipment:

1. The whole plant of Raymond mill is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.

2. Compared with other grinder mill plants or traditional Raymond mill, its passing ratio achieves 99%, this is what other grinding mill cannot reach.

3. Our Raymond mill's driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.

4. The electric control system of Raymond mill is centralized controlled, so the automatically is high, no people are needed in the operating room when the Raymond mill is working.

5. Main parts of the whole plant are made from cast and steel of high quality. Such strict techniques insure the durability of whole plant.

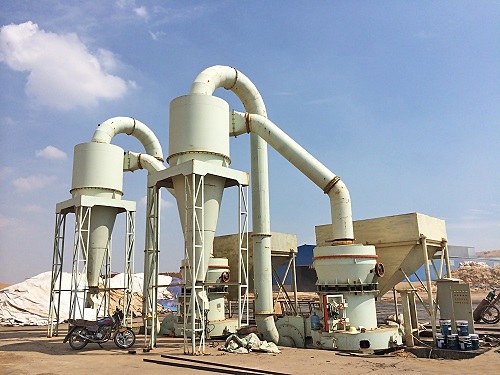

Raymond grinding equipment

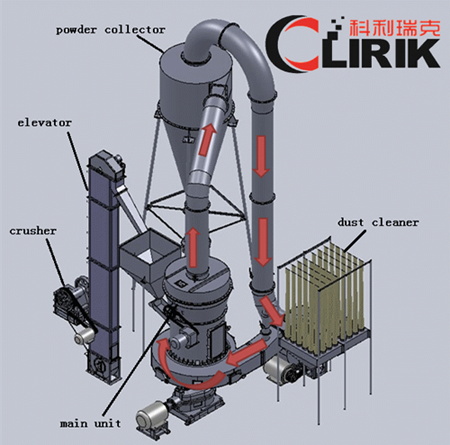

Working principle of Raymond grinder equipment/grinding equipment:

Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder processing. The rollers of Raymond mill oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff is carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.

Detail Specification of Raymond grinder equipment/grinding equipment:

Type

Roller

Max. feeding size(mm)

Fineness of product(mm)

Output (t/h)

Power of machine(KW)

Size(mm)

No.

Dimension(mm)

Height(mm)

YGM7815

3

260

150

15-20

0.025-0.005

0.28-3

18.5

4300*3500*5100

YGM8314

3

270

140

15-20

0.025-0.005

0.35-3.4

22

5300*4100*5200

YGM9517

4

310

170

15-25

0.025-0.005

1.5-6.5

37

7100*5900*7900

YGM4121

5

410

210

15-25

0.613-0.044

3-12

75

7850*8000*9700

Should you have any questions, please do not hesitate to contact us.
